TUV Ce IP67 2.5mm2~6.0mm2 Male and Female DC 1000V Solar Cable Connector
The Features of solar cable connector
1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PC material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting
| Type: connector PV004 |
| Electrical Features: |
| Rated Current | 25A(2.5/4mm2),30A(4/6mm2) |
| Withstanding Voltage | 1000V DC(TUV),600V(UL) |
| Contact Resistance | ≤0.3mΩ |
| Protection Class | Class II |
| Mechanical Features: |
| Temperature Range | -40 oC~+90oC |
| Protection Degree | IP2X,unmated;IP67,mated |
| Wire Size Range | 2.5/4/6mm2(14AWG,12AWG,10AWG) |
| Unmating Force | 200 Newton |
| Material Features: |
| Insulation Material | PC |
| Contact Material | Copper,Tin plated |
| Flame Class | UL94-V0 or UL94-5VA |
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

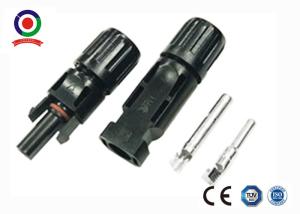

Picture of solar connector
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
